Glass can be colorful,patterned with different colors ,digitally printed glass can also print creative and unique exterior appearance.
Lanjing offers the colorful laminated glass ,patterned glass and digital printing glass with designed patterned for exterior or Interior glass application.

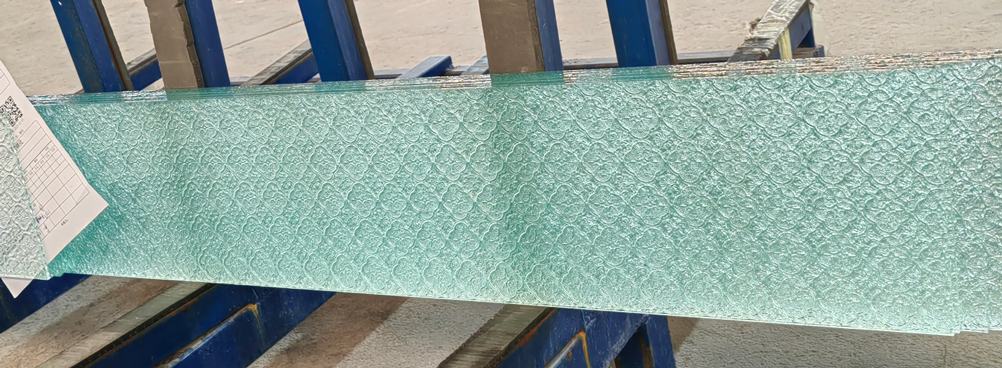

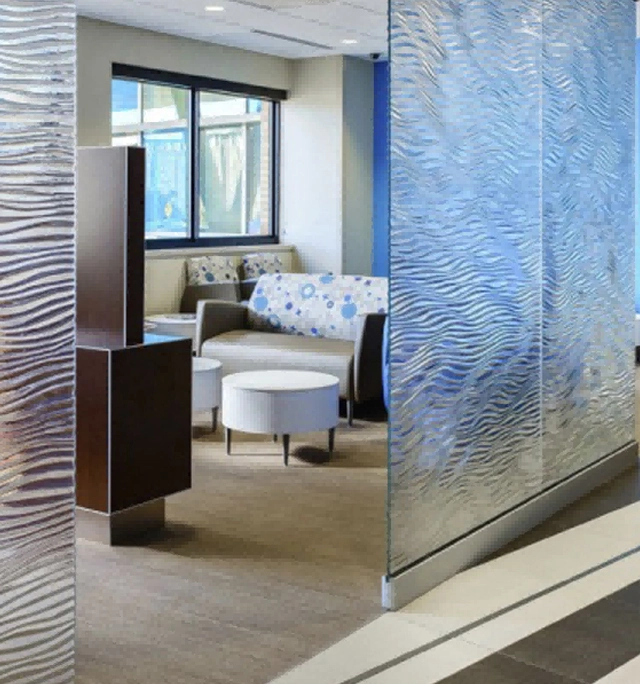

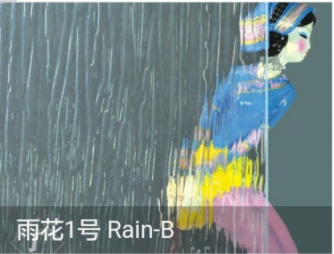

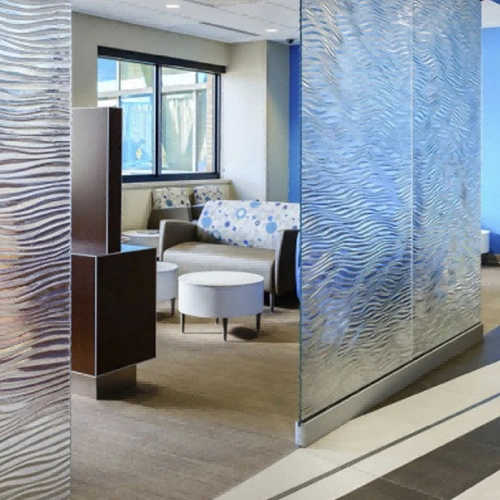

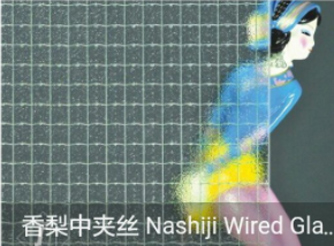

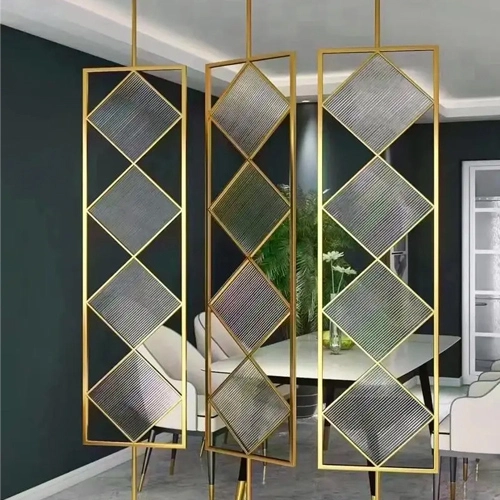

Pattern glass not only provides function of visual screen but also creates aesthetic beautiful senses of changing lights and shades. Lanjing glass offers more than 70 kinds of the patterned glass, like Moru, Mislite, Rain, Diamond ETC. More pattern needed kindly click here.
| Patterned glass thickness and size | |
| Thickness | Regular Standard Size |
| 3.0mm | 2000*1500 mm, 1830*1220 mm, 2134*1830 mm, 2134*1676 mm. |
| 4.0mm | 2000*1500 mm, 2440*1830 mm, 2134*1830 mm. |
| 5.0mm | 2440*1830 mm, 2134*1830 mm, 2440*2134 mm, 2440*2000 mm. |
| 5.5mm | 2134*1830 mm, 2440*2000 mm. |
| 6.0 to 12.0mm | 2440*1830 mm, 2440*3300 mm, 3300*1830 mm. |
| Color | Clear, Ultra Clear, Blue, Green, Bronze, Yellow, Grey. |

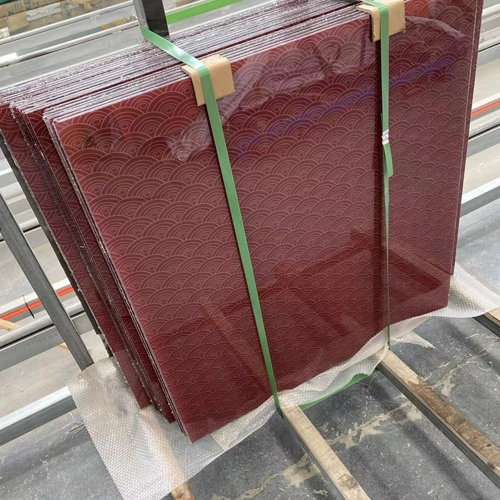

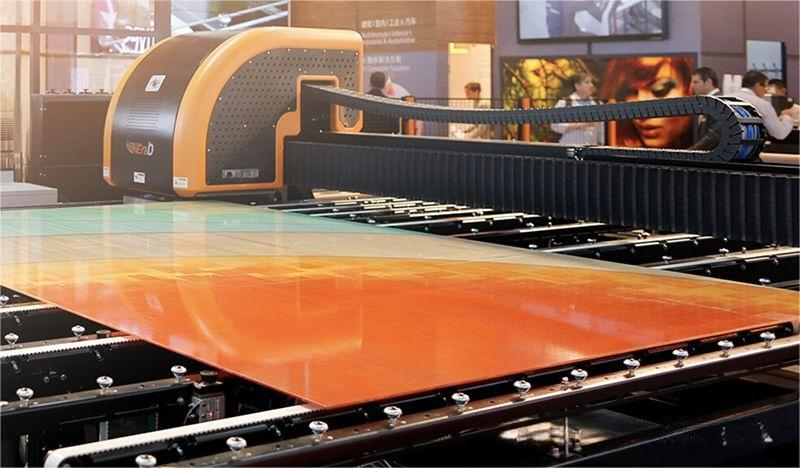

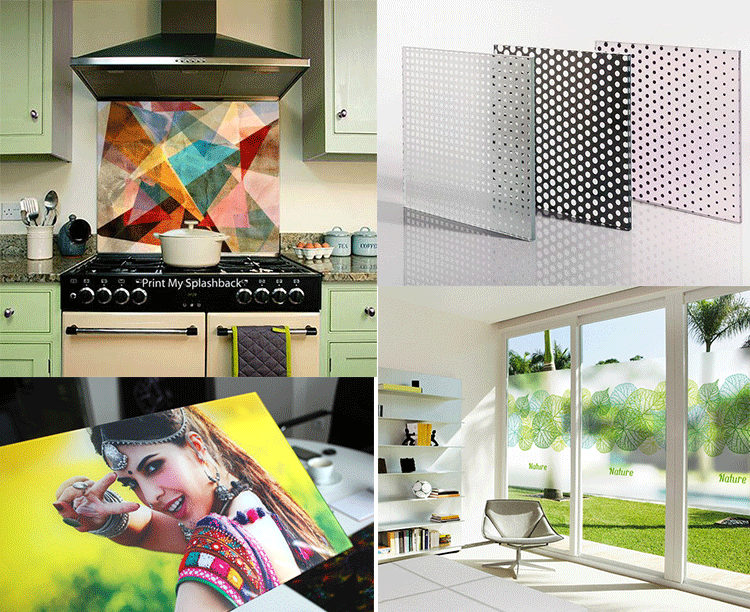

Digital printing with ceramic inks, create a jumbo picture on an area of glass, it can be on a facade ,or some unique theme park or museum. Lanjing helps you to achieve what you want.
| Production Capability | |
| Glass Thcikness | 3-19mm |
| Glass Standard | EN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841, 5 years warranty |
| Glass Size | MIN 300*300MM, MAX 2600*45000MM |
| Monthly Output | 10,000SQM |

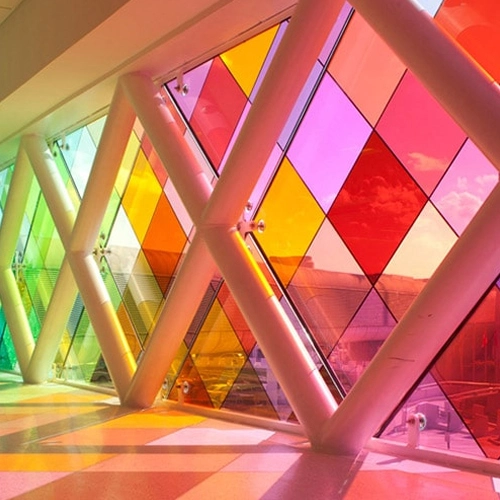

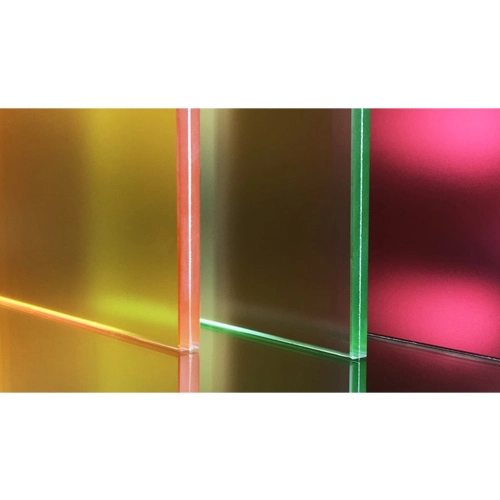

Tinted color glass colors and dimension are limited can not meet the archetector's demand.To increase more possibility,PVB fabricators offer new and gorgeous colorful PVB, we get any color we want.
From Trosifol, to Eastman Vanceva series, thousands of color combination make every creation become reality.
More colored PVB from Vanceva clike here.

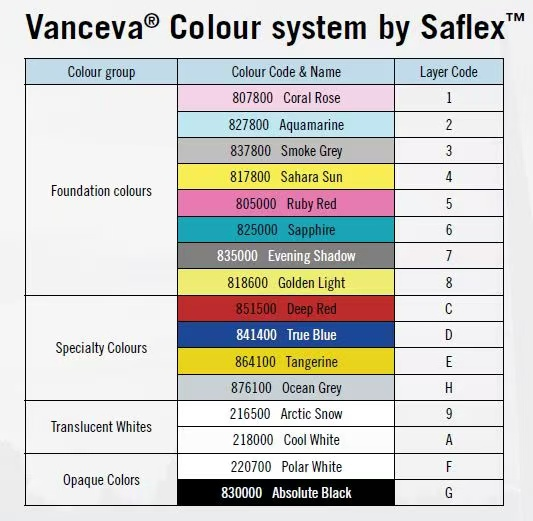

Vanceva PVB type

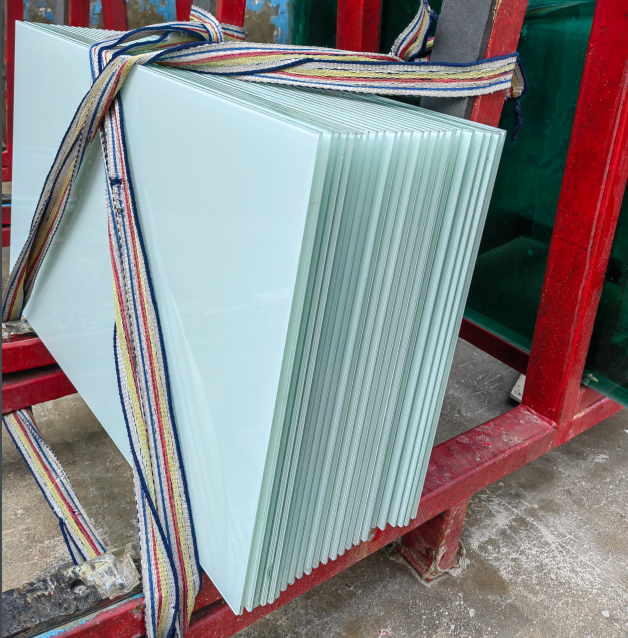

Opaque White PVb Laminated Glass
| Production Capability | |
| Glass Thcikness | Single panel thickness 3-19mm, interlayer 0.76mm, 1.14mm,1.52mm |
| Glass Standard | EN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841, 5 years warranty |
| Glass Size | MIN 300*300MM, MAX 13000*3000MM |
| Monthly Output | 50,000SQM |

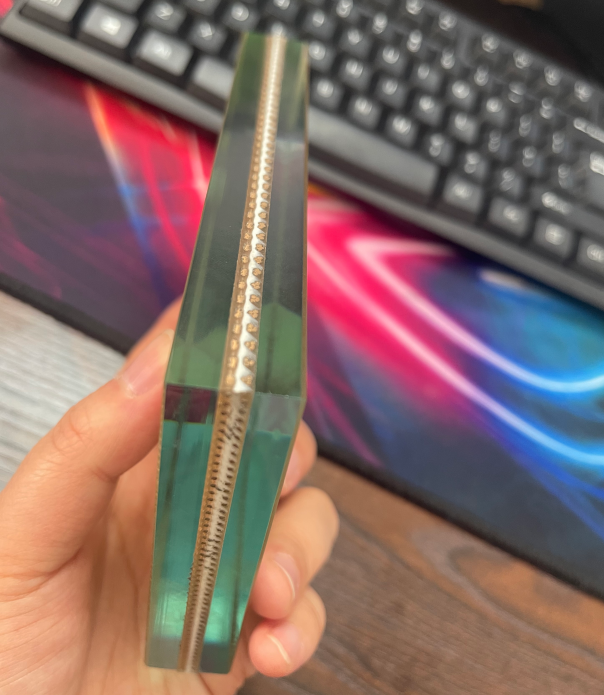

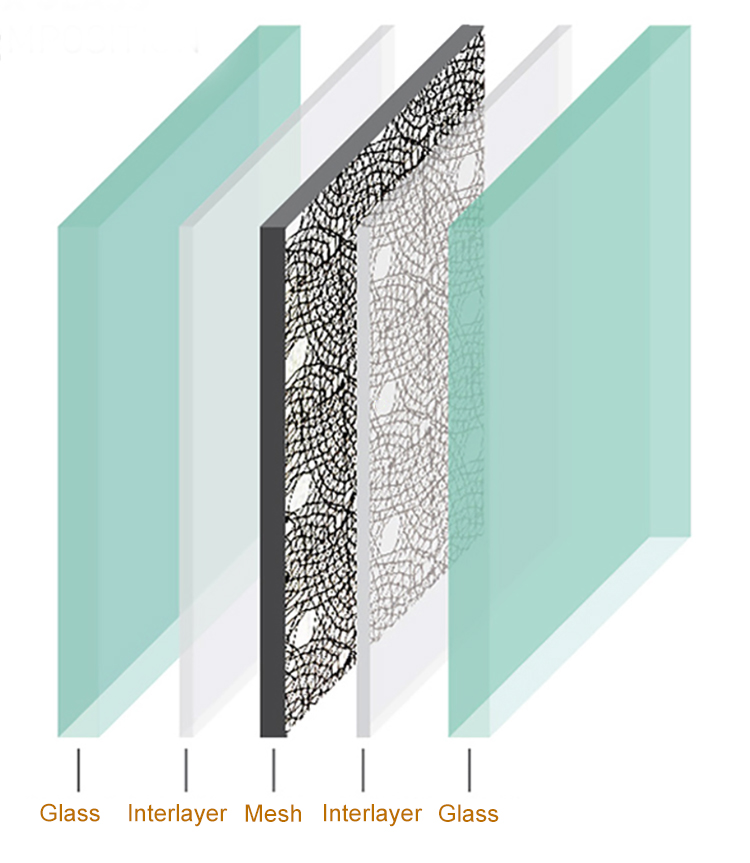

Mesh laminated glass is made by sandwiching one thin wire mesh between two or more pieces of glass, it is the combination of high strength glass and refined structure metal mesh.
Features of matel mesh laminated glass:
High strength: Glass is tempered, the mesh is metal, it's with higher strength than normal clear glass.
Excellent sound insulation: The mesh laminated glass need thicker PVB to adhere the mesh,can block sound waves and maintain a quiet and comfortable environment.

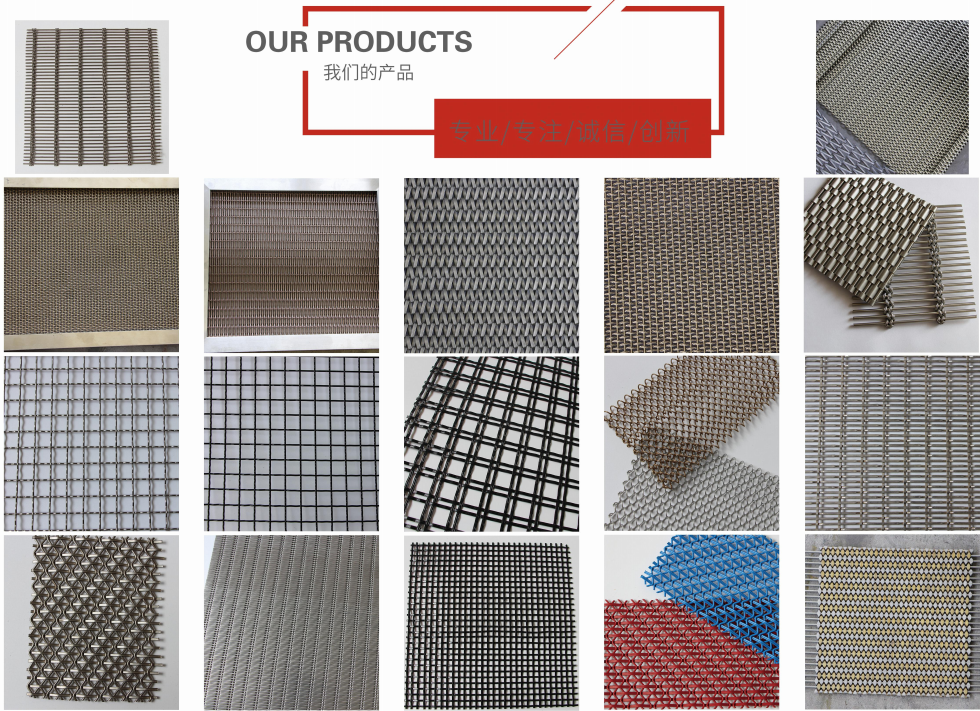

Unique aesthetics: There are many type of the metal mesh, also can make it following architector's request.
UV resistance: The mesh prevent direct sunlight and UV.
Energy saving and environmental protection: rReduce the transmission of sunlight and reduce cooling energy consumption.
| Production Capability | |
| Glass Thcikness | Single panel thickness 3-19mm, PVB interlayer 0.76mm, 1.14mm,1.52mm ,metal mesh can be 1 or 2 layers |
| Glass Standard | EN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841, 5 years warranty |
| Glass Size | MIN 300*300MM, MAX 13000*3000MM |
| Monthly Output | 10,000SQM |
| Clear,Low Iorn,Tinted,Coated | |
| Glass Thcikness | Heat Soaked: 3-19mm |
| Glass Standard | EN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841, 5 years warranty |
| Glass Size | MIN 300*300MM, MAX 9500*3000MM |
| Monthly Output | 50,000SQM |
Pls leave a message if you have any inquiries or questions, thank you.
