Frame supported glass curtain wall is a glass curtain wall supported by a metal frame around the glass panel, mainly including:

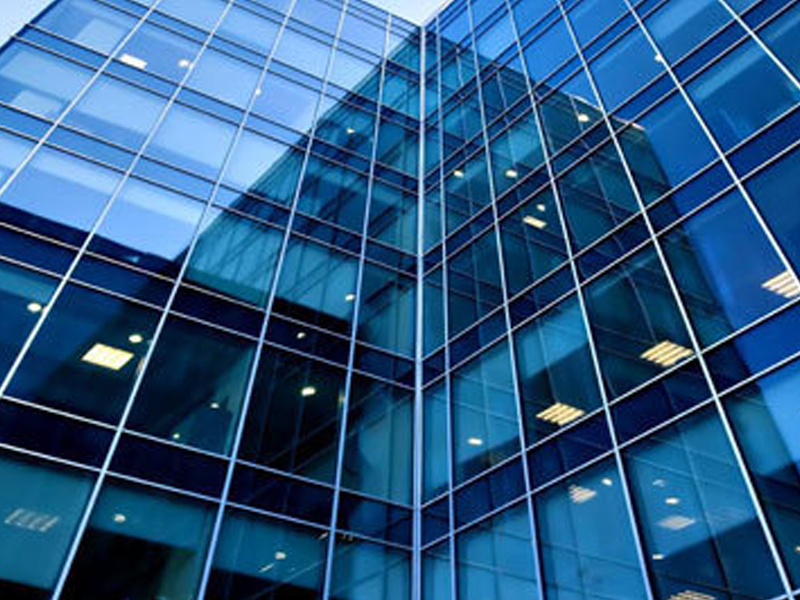

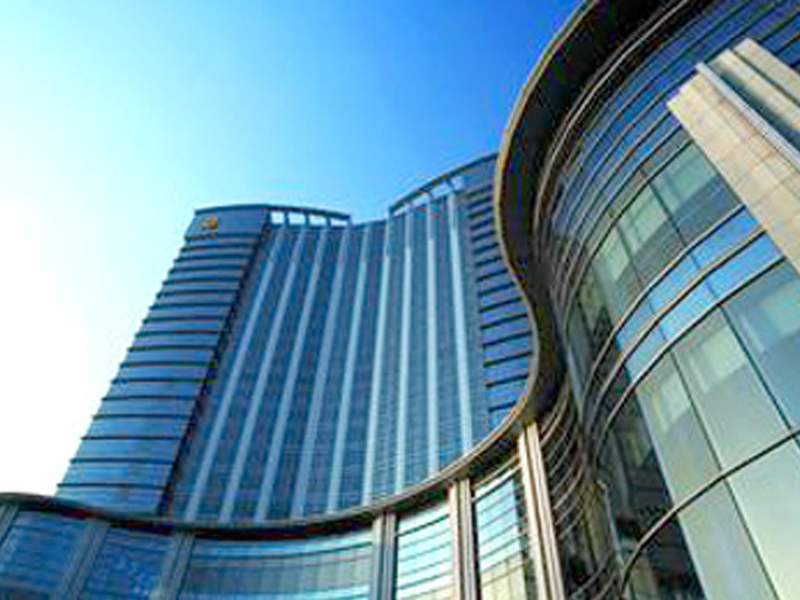

Framed glass curtain wall is a glass curtain wall with metal frame members exposed to the outer surface. It is framed by aluminum alloy profiles with special sections, and the glass panels are fully embedded in the grooves of the profiles. Its characteristic is that the aluminum alloy profile itself has the dual role of skeleton structure and fixed glass.
Framed glass curtain wall is the most traditional form, the most widely used, reliable performance. Compared with the hidden frame glass curtain wall, it is easier to meet the requirements of construction technology.
The metal frame of the glass curtain wall is concealed on the back of the glass, and the metal frame cannot be seen outside. Hidden frame glass curtain wall can be divided into full hidden frame glass curtain wall and semi-hidden frame glass curtain wall, semi-hidden frame glass curtain wall can be horizontal bright vertical hidden, can also be vertical bright horizontal hidden. The structure of the hidden frame glass curtain wall is characterized by: the glass is outside the aluminum frame, and the glass is bonded to the aluminum frame with silicone structural sealant. The load of the curtain wall is mainly borne by the sealant.
All-glass curtain wall is a glass curtain wall composed of glass ribs and glass panels.
1. The glass thickness of the all-glass curtain wall panel should not be less than 10mm; Laminated glass sheet thickness should not be less than 8mm; The thickness of the rib section of the glass curtain wall should not be less than 12mm, and the height of the section should not be less than 100mm.
2. When the glass curtain wall exceeds 4m (glass thickness 10, 12mm), 5m (glass thickness 15mm), 6m (glass thickness 19mm), the all-glass curtain wall should be suspended on the main structure.
3. The main component of the all-glass curtain wall should have sufficient stiffness. When steel trusses or steel beams are used as force components, the center line should be consistent with the center line of the curtain wall, and the center line of the oval screw hole should be consistent with the location of the anchor bolt of the curtain wall hanger.
4. A rigid horizontal force transfer structure should be set up between the hanging clamp of the hanging all-glass curtain wall and the main structure.
5. After welding of all steel structures, acceptance of concealed works should be carried out, and anti-rust paint should be applied after acceptance.
6. The size of the glass panel of the all-glass curtain wall is generally large, and mechanical suction cups should be used for installation.
7. The all-glass curtain wall allows the injection of silicone structural sealant on site.
8. The all-glass panel shall not be in direct contact with other rigid materials. The gap between the plate surface and the decoration surface or the structural surface should not be less than 8mm, and should be sealed by sealant.
Point supported glass curtain wall is a glass curtain wall composed of a glass panel, a point supporting device and a supporting structure. Its support structure forms are glass rib support, single steel or steel pipe support, truss support and tension rod cable system support structure.

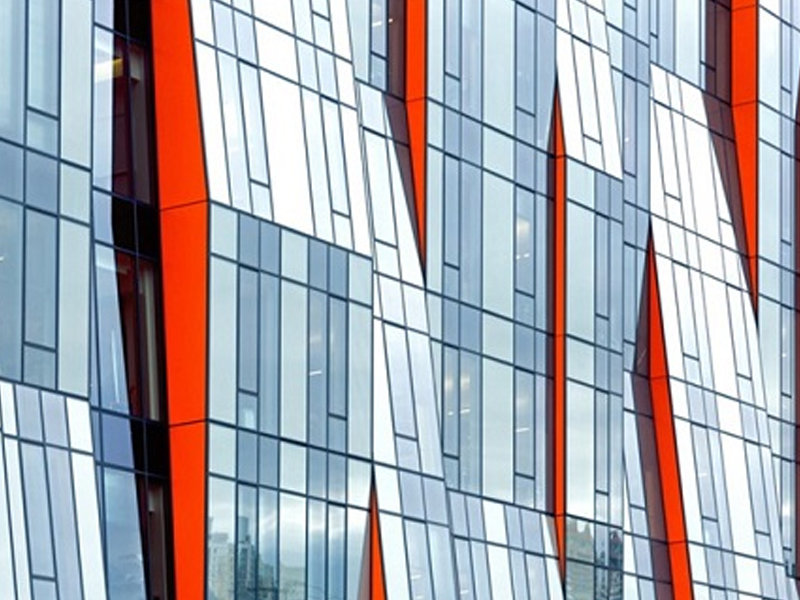

Unit curtain wall refers to the basic unit of curtain wall structure made of various wall rights and supporting frames in the factory, and is directly installed on the main structure of the building curtain wall. Unit curtain wall can be divided into: unit curtain wall and semi-unit curtain wall, also known as solid unit curtain wall, semi-unit curtain wall can be divided into: vertical split-unit combined curtain wall, window wall unit curtain wall.
The curtain wall is the outer wall of the building, which is not load-bearing, and is hung up like a curtain, so it is also called a hanging wall, which is a lightweight wall commonly used in modern large and high-rise buildings with decorative effects.
1, the type and structure of curtain wall curtain wall according to the material can be divided into glass curtain wall, aluminum curtain wall, steel curtain wall, etc., according to the frame can be divided into frame curtain wall and frame less glass curtain wall.
2. Composition of glass curtain wall. It is composed of three parts: skeleton, glass and accessories.
(1) Skeleton. Composed of longitudinal columns and rails, it is used to support the glass, fix the glass, and connect to the wall structure by connecting pieces. It transmits the self-weight of the glass and wind loads and other loads to the main structure, so that the glass and the wall structure are connected as a whole. (2) Glass. Glass is the fabric of the curtain wall, which is not only the building enclosure component, but also the architectural decoration surface, but also the role of the glass window.
3. Accessories (connection and installation accessories) : The main accessories of the glass wall are expansion bolts, aluminum nails, shooting nails, sealing strip materials and connectors.
(1) Pay-off. Determine the axis of the wall and measure the error as the basis for the correct position of the skeleton.
(2) Skeleton installation. The installation sequence of the skeleton is as follows: install the vertical skeleton (column) first, and then install the horizontal skeleton (transverse). There are generally two kinds of fixing methods for vertical skeleton and wall. One is to do the embedded parts when pouring the main structure, and then fix the skeleton after the connecting parts are welded with the embedded parts. Another method is to drill holes in the main structure, fix the connector to the wall with expansion bolts, and then connect the skeleton to the connector. The former is firmly reinforced, but the position of the embedded parts is often wrong with the installation. The latter installation position is accurate, but the punching is laborious, and the firmness is not as good as the embedness. The skeleton installation should be horizontal and vertical to create conditions for the installation of glass. Skeleton installation should be done anti-corrosion treatment, light steel skeleton should be coated with anti-rust anti-corrosion paint. The aluminum alloy skeleton should pay attention to the protection of its oxide film, especially the contact with the concrete should be in the oxide film with anti-corrosion treatment to prevent the corrosion of aluminum by alkaline concrete.
(3) glass installation. The glass installation is directly related to the skeleton structure. There are generally the following methods.
① The glass is placed in the aluminum alloy frame, and the aluminum alloy frame is connected with the curtain wall skeleton. This method is suitable for large frame light steel skeleton.
② Fix the aluminum alloy skeleton, and then install the glass directly on the skeleton, and encrypt the seal, as if installing the door and window glass.
③ In the non-visible frame structure system, the skeleton does not need to close the frame, and the glass is directly pasted on the skeleton with high-strength bonding materials to form a frameless glass curtain wall (or hidden frame glass curtain wall).
