SHANDONG LANJING GLASS TECHNOLOGY CO., LTD.

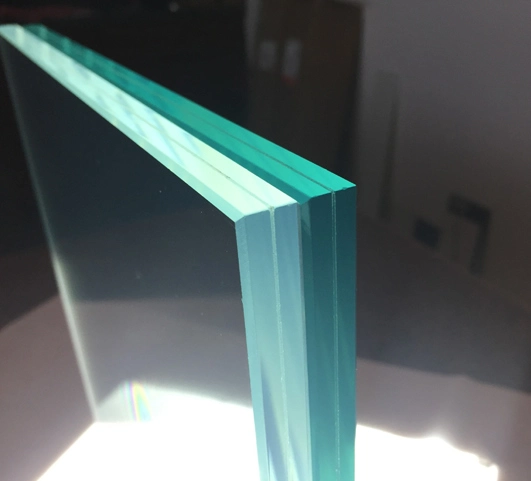

Laminated Glass

Laminated Glass

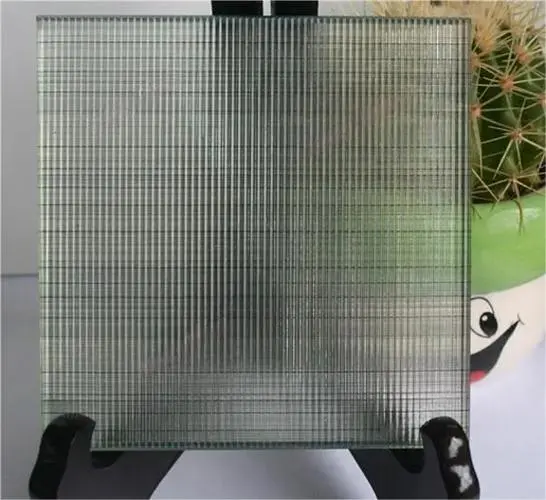

The Features Of Laminated Glass

Boil Testing and Impact Resistance Testing

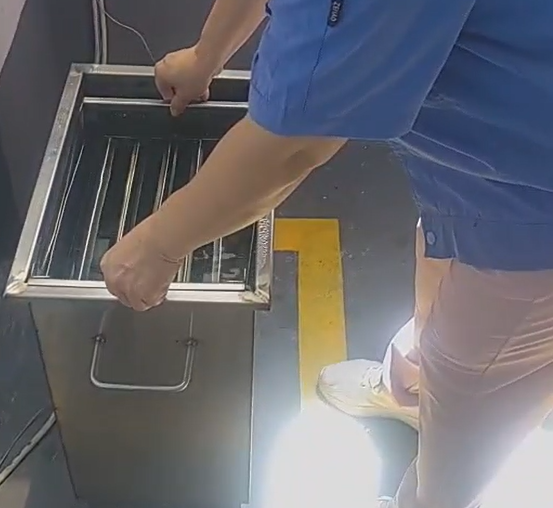

Boil Testing

Boiling test is to put place the laminated glass into boiled water for 2 hours, to check the glass stability and durability at high temperatures, also verify the water resistance and stability of the adhesive layer of laminated glass.

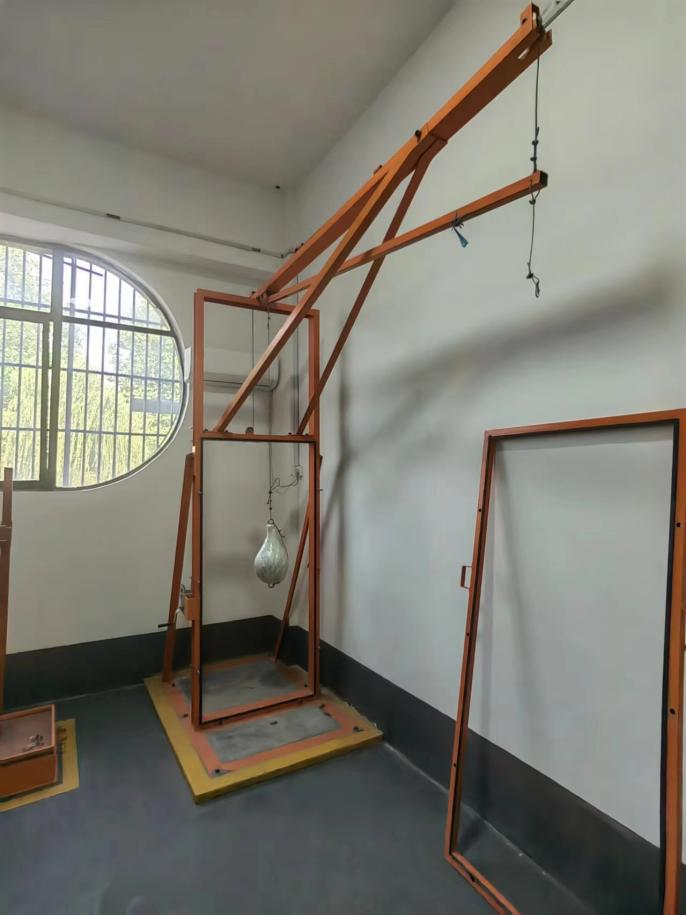

Impact Resistance Testing

The impact resistance test of laminated glass is a method of testing the impact resistance of laminated glass by simulating the impact force in a real environment.


Boil Testing and Impact Resistance Testing

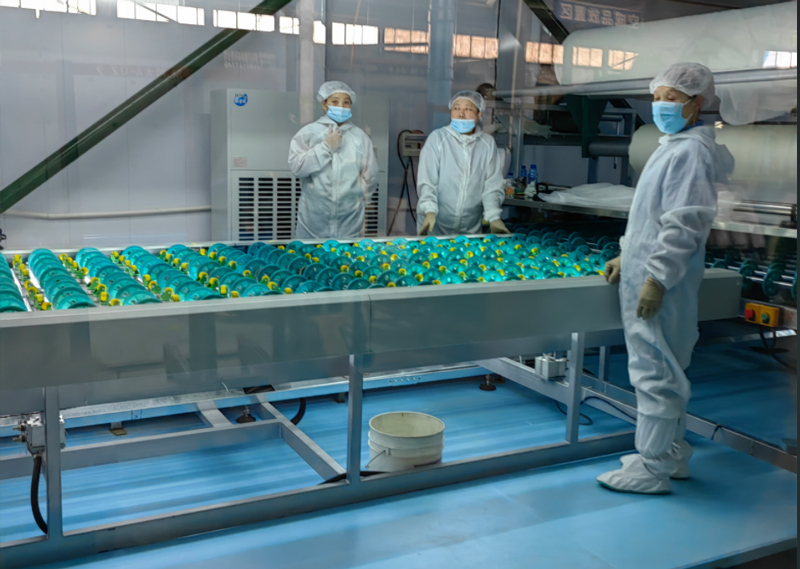

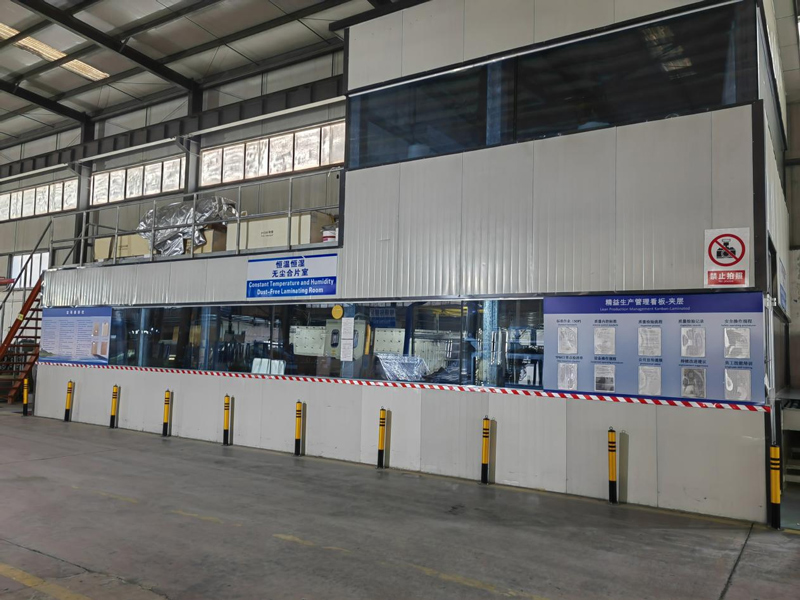

Laminating Room Conditions


Also called clean room, the conditions of laminating room is very important in laminated glass processing.


Laminating Room Conditions


Lanjing has strict control standard on the clean room:

  • Temperature: 18-25℃  Humidity: 30±10%

  • Special protective clothing for every person who enter the laminating room.

  • The air conditioning to keep the temperature following the request.

  • Dehumidification equipment to keep the humidity in a certain range.

  • Air purification equipment to keep the air clean without dust.



Laminating Room Conditions



Production Capability of Laminated Glass


Clear,Low Iorn,Tinted,Coated,Silk Screen Laminated Glass

Interlayer TypesPVB, SGP,EVA
Interlayer ThicknessPVB/EVA:0.38-3.04MM, SGP:0.76MM,0.89MM,1.52MM
Glass StandardEN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841,  5 years warranty
Glass SizeMIN 300*300MM, MAX 13000*3000MM
Monthly Output20,000SQM
